Dedicated chiller for concrete mixing station

Dedicated chiller for concrete mixing station

Product Code: 541239776

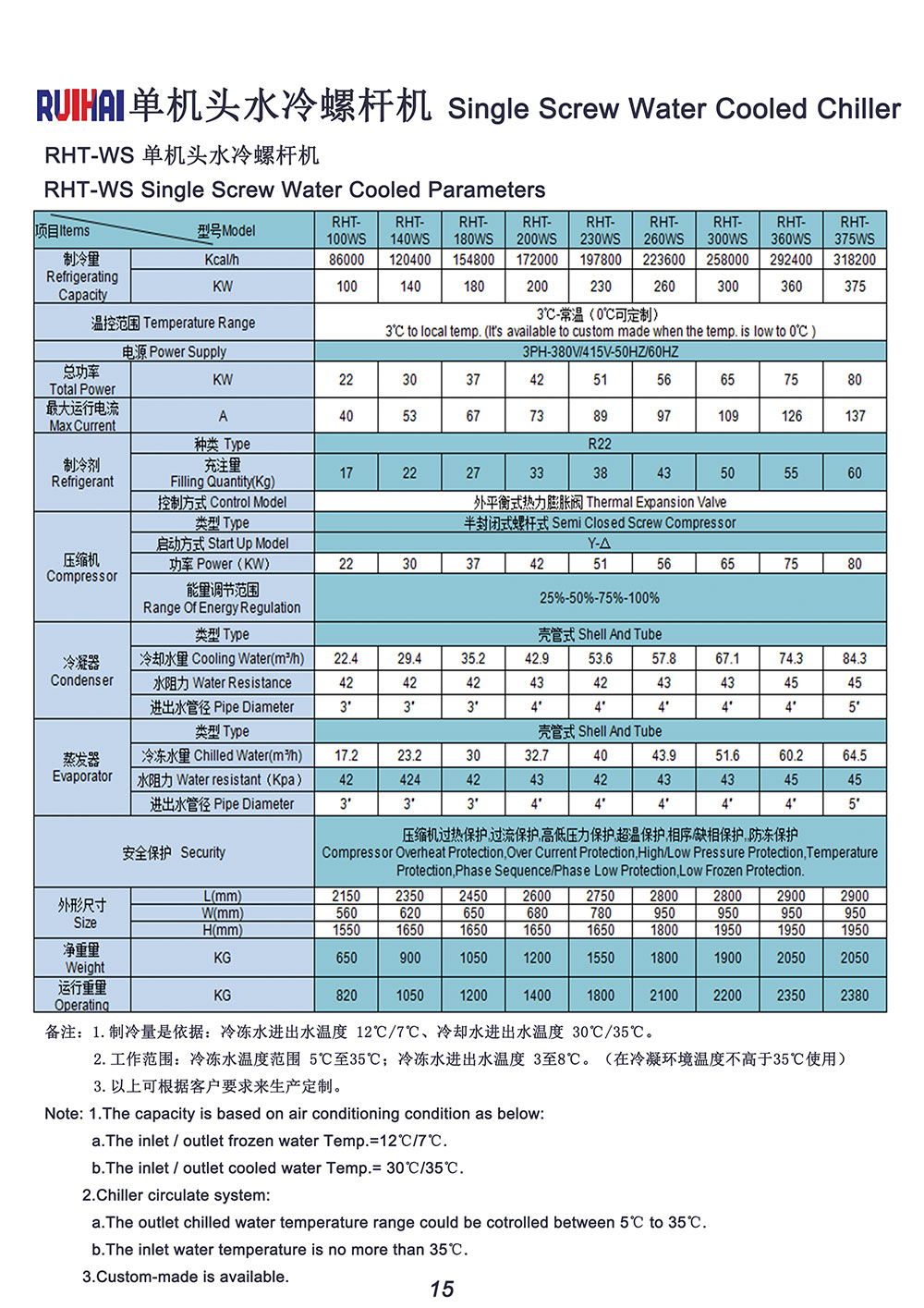

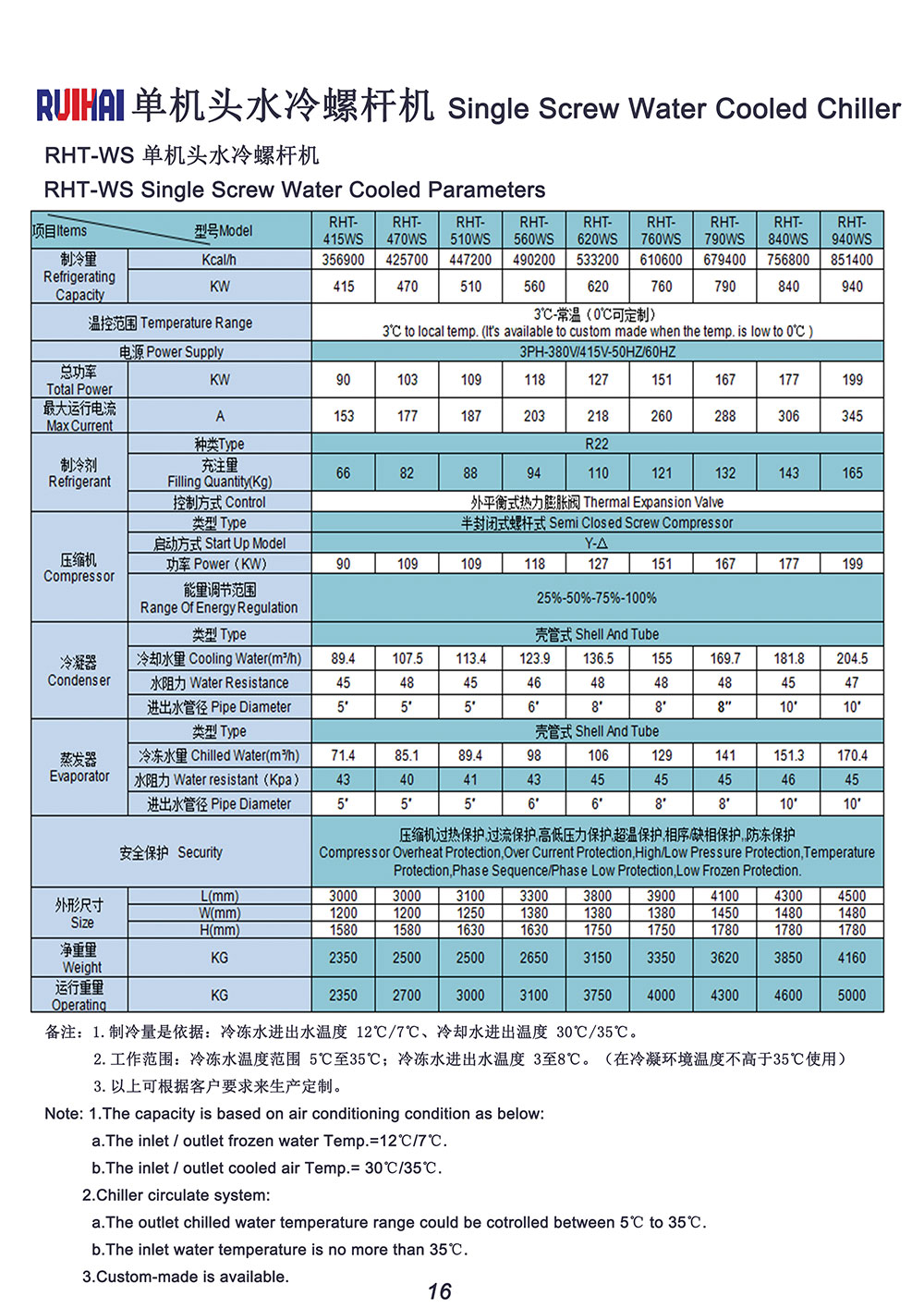

Specifications: RHT-WS
The concrete cooling water chiller is supplied by the company, with excellent performance and competitive price. The cooling capacity is adjustable from 3 ~ 1500KW, the temperature is -10 ~ 30 degrees, and it can be widely used in various industries with particularly large cooling capacity Adopting international advanced semi-hermetic screw compressors, integrated motor / compressor, no worry about shaft seal leakage. It has the characteristics of safety, reliability and economy.



The concrete cooling water chiller is supplied by the company, with excellent performance and competitive price. The cooling capacity is adjustable from 3 ~ 1500KW, the temperature is -10 ~ 30 degrees, and it can be widely used in various industries with particularly large cooling capacity. Adopting international advanced semi-hermetic screw compressors, integrated motor / compressor, no worry about shaft seal leakage. It has the characteristics of safety, reliability and economy.

Based on expressways, projects such as high-speed rail, tunnels, hydropower, dams, bridges, and hydropower stations are mostly in the construction of large-volume concrete to ensure that cracks do not occur on concrete structures with a large thickness. To improve the quality of the project, it is necessary to reduce the water heating of concrete As well as the pouring temperature, our company introduces foreign advanced technology and equipment. The new-generation concrete chiller equipment designed by engineers can produce low-temperature frozen water to reduce the temperature of the concrete. The concrete temperature can drop below 15 degrees. At the same time, the products of cement, stone, and yellow sand with a temperature between 20-30 degrees are good in quality and the ambient temperature in summer is very high. The water temperature is also high and is not conducive to mixing. Frozen water at 10 ℃, or ice-water mixture at 0-2 ℃, can fully meet the requirements of the country's required quality source for process cooling for quality inspection of concrete cooling.

The special chiller for concrete uses the international famous brand screw compressor as the refrigeration host, combined with the full-automatic control system, it can automatically select one-stage cooling or multi-stage cooling according to the inlet and outlet water temperature or the summer and winter operation modes. Compared with the traditional concrete cooling system (chiller + ice-making unit), it can save energy by 10-35%, and reduce the cost of investment greatly. Special cold water machine for concrete can provide: 1 ton / hour ~ 150 ton / hour special cold water or ice water mixture for concrete. It is designed and produced according to the type of mobile cold water station. The whole machine is shipped in container mode. Match the power supply and connect the pipes before use. In order to meet the actual production needs of our customers as much as possible, we can design, produce and match the units according to customer site construction requirements.

Concrete ice chiller | Special chiller for concrete is widely used in national bridges, railway bureaus, highway bureaus, construction bureaus, water conservancy and hydropower bureaus and other large concrete projects, such as high-speed rail, tunnels, hydropower, dams, hydropower stations and other civil concrete mixing Cooling and so on, it can accurately control the temperature required by modern industrial mechanized production, thereby greatly improving production efficiency and product quality.

The company promises to provide free concrete chiller for one year maintenance and lifetime maintenance. The perfect after-sales service has won the favor of our customers.
