Dedicated chiller for electroplating (anti-corrosion)

Dedicated chiller for electroplating (anti-corrosion)

Number of products: 789523101

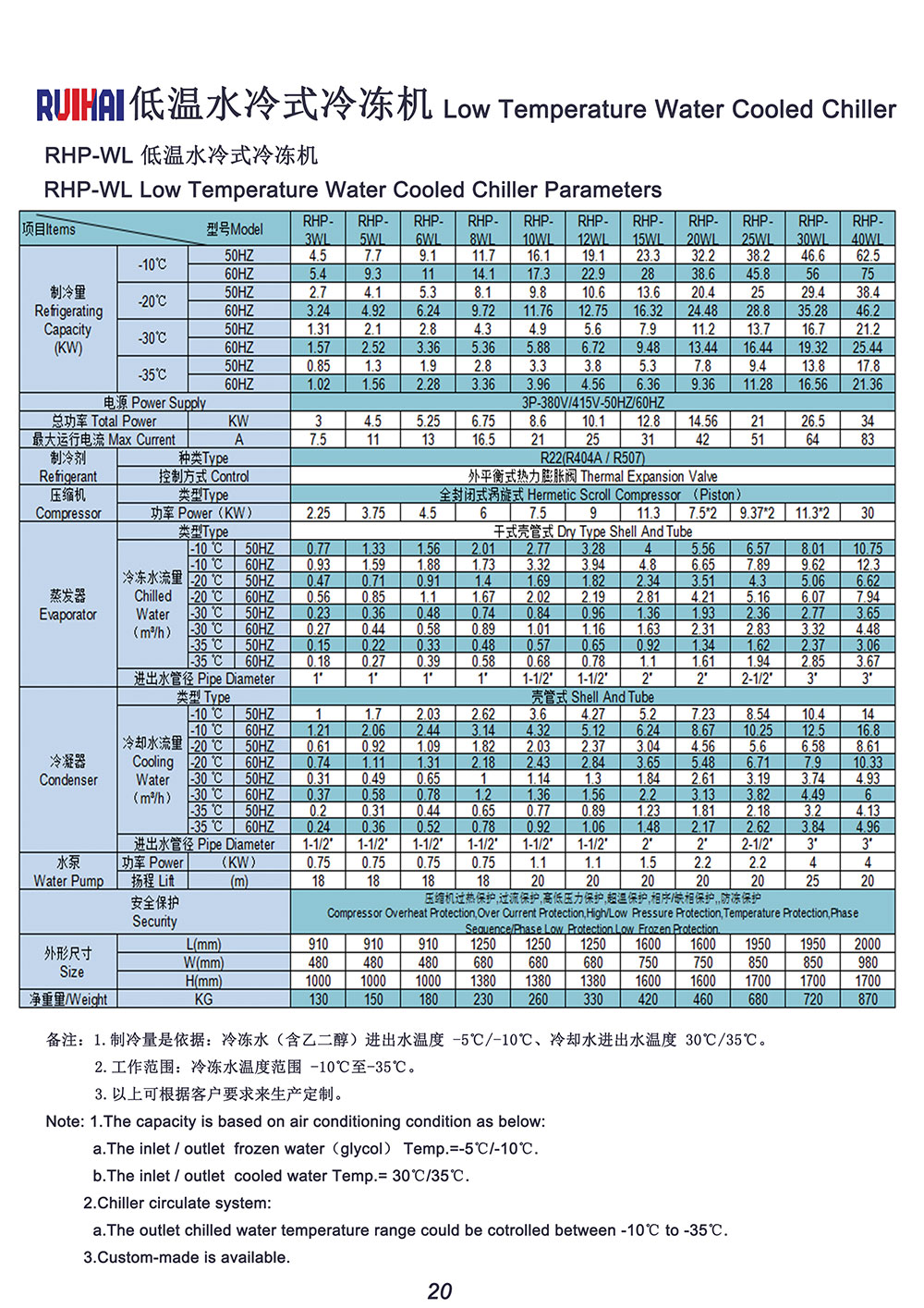

Specifications: RHP-WL
1. Upgrade the shell and tube heat exchanger made of titanium or 316L stainless steel to meet the corrosion requirements of the electroplating industry;
2. Installation of anti-corrosion shell and tube evaporator, stainless steel pipe, stainless steel pump or plate exchanger. It can help stabilize metal ions and make metal ions
Quickly attach the electroplated parts, not only increase the density and smoothness, but also reduce the number of electroplating times, improve productivity, help to quickly recover various chemicals, and reduce waste;
3. Upgrade the coilless pure stainless steel material water tank, which has a durable and stable cooling effect, and the temperature control accuracy is ± 1 ℃;
4, increase with ultra-high and low temperature display and signal output protection, configure the normally open and normally closed output for selection;
5. Upgraded frozen water circulation system adopts stainless steel multi-stage pump and stainless steel, PVC material connection, no worry about rust, can use pure water or deionized water directly;

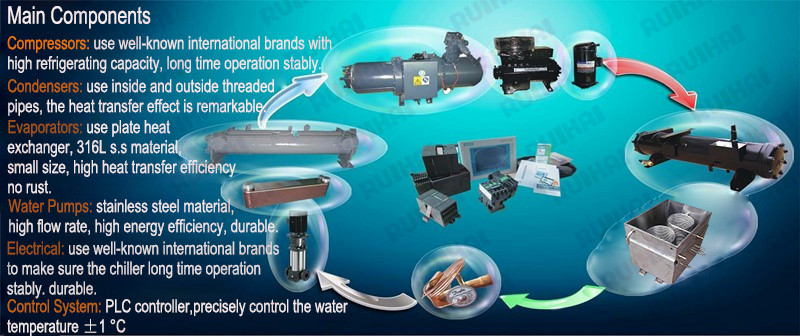

Main configuration and characteristics of water-cooled chiller for electroplating:





1. Upgrade shell and tube heat exchangers made of titanium or 316L stainless steel to meet the corrosion requirements of the electroplating industry;

2. Install anti-corrosion shell and tube evaporator, stainless steel pipe, stainless steel pump or plate exchanger. It can help stabilize the metal ions and make the metal ions quickly attach the electroplated parts, which not only increases the density and smoothness, but also reduces the electroplating. Times, improve productivity, help to quickly recover various chemicals, and reduce waste;


3. Upgrade the water tank made of pure stainless steel without coil, which has long-lasting and stable refrigeration effect, and the temperature control accuracy is ± 1 ℃;

4, increase with ultra-high and low temperature display and signal output protection, configure normally open and normally closed output for selection;

5. Upgrade the chilled water circulation system using stainless steel multi-stage pump and stainless steel, PVC material connection, no worry of rust, you can use pure water or deionized water directly;

6. Add water filter to provide high-precision laser work precision, increase the output pressure display meter, to facilitate the adjustment of pressure and flow, and increase the flow protection device, when the water flow is too small, the laser power is automatically disconnected to prevent the laser head due to Overheating due to lack of water, adding electronic temperature control, double-digit display, multiple settings and fault display functions, only one-button operation (on / off key), and other functions are automatically realized by the memory function;


7. Cooling capacity range: 8170Kcal / h to 1654800Kcal / h.

8. The condenser of the unit is a shell and tube type. The condenser uses different types of heat exchange copper tubes imported from Germany and Japan and domestically produced. The outer surface of the copper tubes is processed into trapezoidal low rib tubes to increase the heat exchange area and enhance heat exchange. performance. The inner surface of the copper pipe is smooth, which reduces the water pressure and is easy to clean and maintain.

9. The unit can also use air-cooled auxiliary equipment, which does not need to be equipped with cooling water pumps, cooling towers, etc. As long as it is conveniently ventilated, it can be used, which can save a lot of material and engineering installation costs, even without setting up a machine room.


10. The condenser of the air-cooled unit is a fin type, which adopts double oil ripple hydrophilic aluminum platinum. It is manufactured by professional heat exchanger processing equipment. It has the advantages of compact structure, small size, light weight and high heat exchange efficiency. Equipped with a low-speed large-leaf axial fan can effectively reduce the operating noise and reduce the impact on the surrounding environment.

11. In addition to stereotyped products, the company can also order various special chiller units and heat pump units according to customer requirements, and provide on-site assembly and technology
Guidance and on-site commissioning services.



After-sales service:

The warranty period is 12 months, free maintenance during the warranty period, only the material cost fee is charged outside the warranty period, and lifetime maintenance.
