Industry-specific (industrial) chiller Position: Home > en > Products > Industry-specific (industrial) chiller >
Special chiller for injection molding machine

Special chiller for injection molding machine

Number of products: 789621345

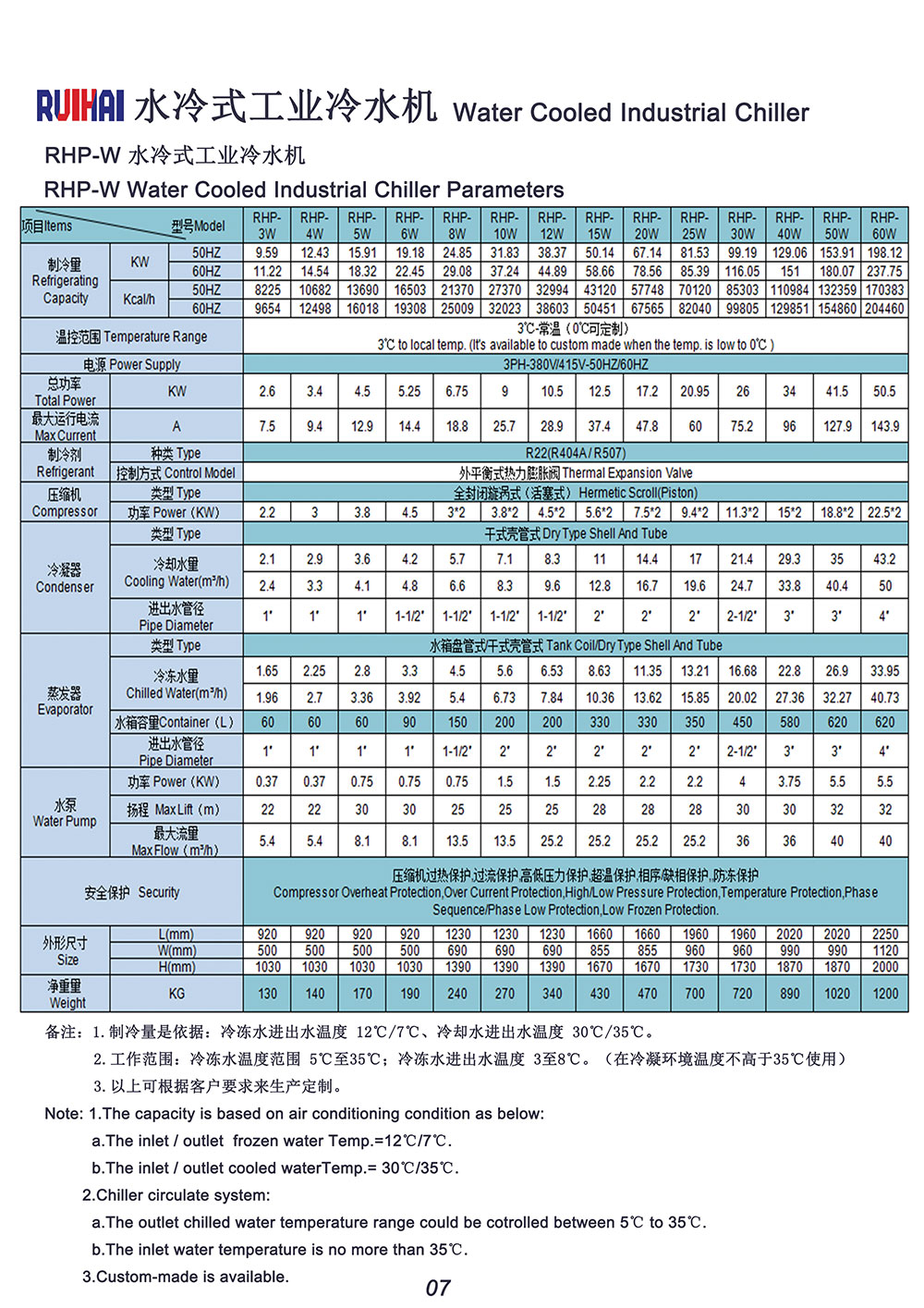

Specifications: RHP-W
Features of chiller for injection molding machine
1. The world's most advanced scroll or piston compressors, electrical appliances and refrigeration system original components are all world famous products:
2. Ethylene glycol solution can be used as the refrigerant. The chilled water outlet temperature can be controlled below -20 ℃:
3. FL series chiller for injection molding machine is equipped with dual refrigeration circuits, even if one circuit fails, the other circuit can run as usual:
4. FL \ SL type chiller for injection molding machine is equipped with movable casters at the bottom, which is flexible and convenient to use;


Features of injection machine chiller

1. The world's most advanced scroll or piston compressors, electrical appliances and refrigeration system original components are all world famous products:

2. The air-cooled condenser of the chiller dedicated to the injection molding machine adopts the imported fan and the high-flow axial flow design, which has a high heat exchange effect;

3. The air-cooled series does not need to be equipped with cooling pumps and water towers, which is easy to install and suitable for use in environments where production sites are scarce:

4. Ethylene glycol solution can be used as the refrigerant. The chilled water outlet temperature can be controlled below -20 ℃:

5. The injection molding machine chiller FL series is equipped with dual refrigeration circuits. Even if one circuit fails, the other circuit can run as usual:

6. FL \ SL type chiller for injection molding machine is equipped with movable casters at the bottom, which is flexible and convenient to use;

7. Streamlined and beautiful design of water cooler for injection molding machine, the operation procedure is clear at a glance:

8. Wood rust steel water tank is installed in the unit. High-performance, high-flow dedicated water pump:

9. All chillers must be inspected and debugged at the factory, and on-site installation is simple and convenient:

10. If you need to order large injection molding machine chiller equipment with larger cooling capacity, please refer to the FL series injection machine chiller catalog.

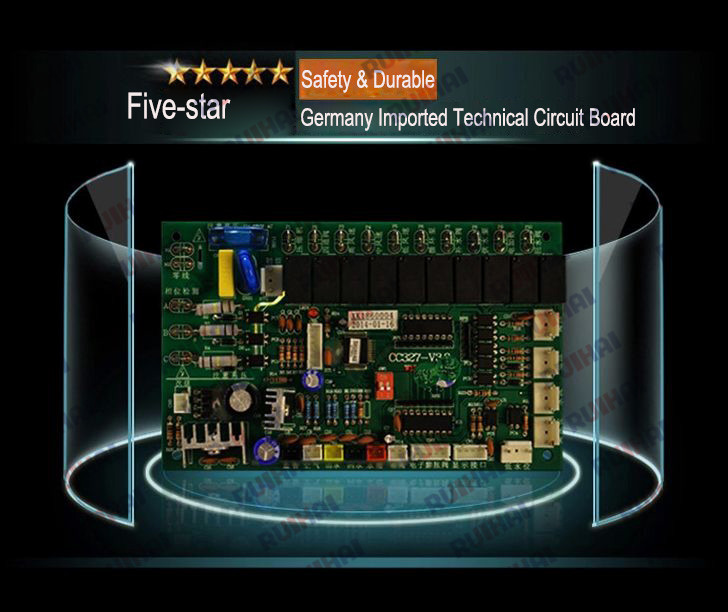

Microcomputer control

1. Water cooler for injection molding machine, European and American high-precision digital humidistat, can accurately and accurately measure cold water temperature. Accurate to + 0.5 ℃;

2. The operation panel intuitively displays the operation and failure status of the compressor, water pump, and refrigeration system at a glance;

3. Easy operation, just press the switch, the chiller for injection molding machine can run automatically.

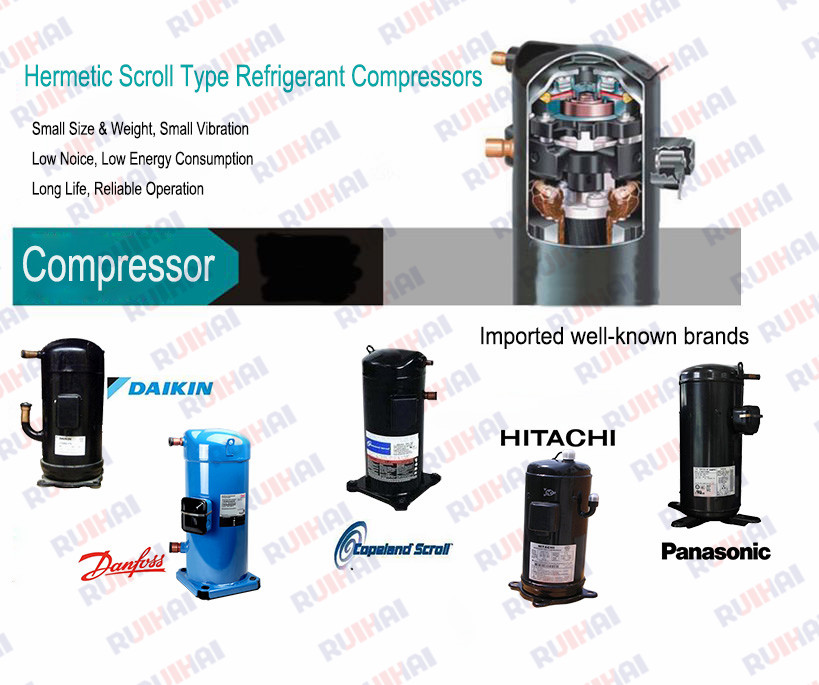

Scroll compressor

1. The most advanced scroll compressor in the world:

2. Compared with the traditional reciprocating type, the efficiency can be improved by more than 10%, saving energy consumption;

3. Lower failure rate, better performance and reliability.




Pumps-cold water for injection molding machines

The impeller adopts excellent hydraulic model design, which has excellent dynamic and static balance and stable performance.

1. The whole pump adopts imported bearings, with small vibration and low noise;

2. Coaxial direct structure, high efficiency, small size, light weight, easy installation and maintenance;

3. The mechanical seal is used to ensure that the shaft center is not damaged, water does not leak, and the service life is long.

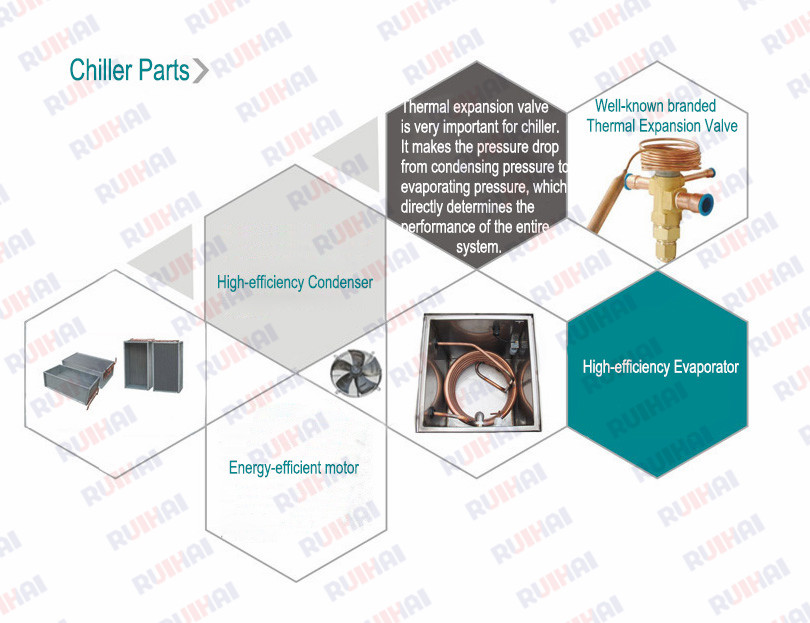

Cold water machine for injection molding machine

In the electrical control system and refrigeration system used, the main components such as relays, thermal protectors, expansion valves, pressure controllers, and drying filters are world-renowned brand products, which greatly improves the reliability of the whole machine.
